Stainless Steel Laminar Air Flow System , Sampling Booth For Raw Materials

Brand Name : YN

Model Number : YN-980B

Certification : CE/ISO

Place of Origin : Guangdong China

MOQ : 1 PCS

Price : Reconsideration

Payment Terms : L/C,D/A,T/T,Western Union

Supply Ability : 5000 sets /month

Delivery Time : 7-15 workdays

Packaging Details : Wooden case or as your requirement

Product name : Sampling booth

Material : Stainless steel

Size : 700*900*1900mm

Cleanliness : 10000 class≥0.5μm（USA Federal Standard 209E）

Air Velocity : 0.25-0.6m/s

Power : AC，Single phase 220V/50Hz

Laminar type : Vertical laminar flow

Packaging : Wooden case

Contact Now

Product Description

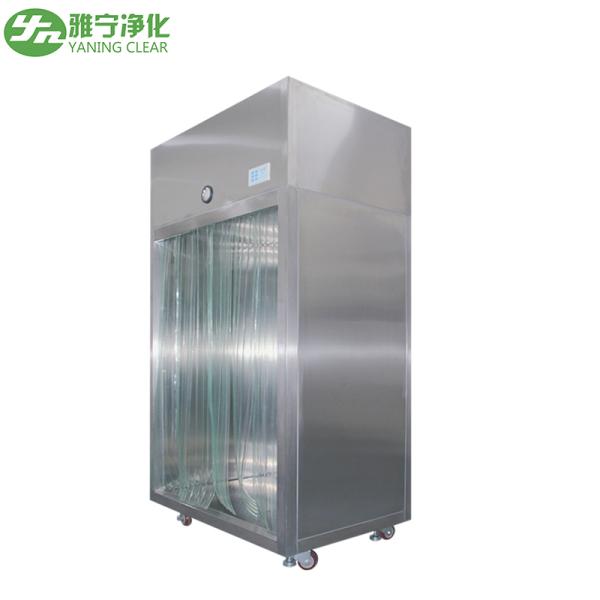

YANING GMP Portable Laboratory Dust Free Modular Clean Room Dispensing Sampling Clean Booth

Sampling Booth has been designed to provide a Class 100 working environment at rest, with built-in scavenging system to ensure protection for the product, operator and surrounding environment.
Mobile sampling booth can be easily moved to various raw material storage areas sampling, used for various environmental storage areas. The device maximum clean class level up to one hundred, it is the required equipment for

GMP standard. The main performance parameters as below:
Purification level: 100-10000 class;
Noise: ≤ 63dB (A);
Vibration: ≤ 3μm ( three directions X, Y, Z);
Normal operating conditions: temperature 5-40℃; relative humidity 80%;atmospheric pressure 80-160Kpa;
Lighting: ≥ 300Lx;
Appearance: baking surface is bright and smooth; anti-static air curtain is smooth, vertical, no damage.
Stability: four casters in the same plane;
Casters: flexible and reliable.

Stainless Steel Laminar Air Flow System , Sampling Booth For Raw Materials

Product Detail

Product Parameter

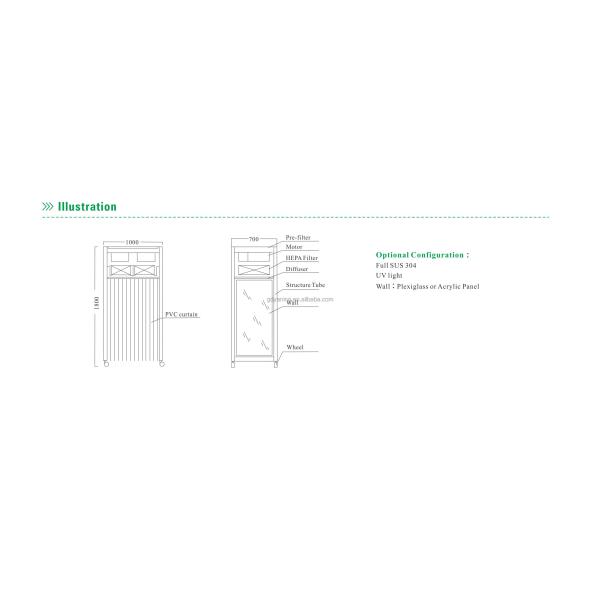

The system comprises:
* Imported Minipleat HEPA Filter with hot melt technology, which conforms to EU 13 Grade, with an efficiency rating better than 99.99% for 0.3μ at supply position
* Imported Minipleat HEPA Filter with hot melt technology, which conforms to EU 13 Grade, with an efficiency rating better than 99.99% for 0.3μ at exhaust position
* Fabtech make prefilter which conforms to EU 4 Grade, with efficiency of 90% down to 10µ. These Filters are basically made from micro-fibre-glass media and are inherently washable
* Fabtech make Intermediate filter which conforms to EU 7 Grade, with efficiency of 95% down to 3µ. These Filters are basically made from micro-fibre-glass media and are inherently washable
* Motor Blower provided are statically and dynamically balanced, Supply of sufficient capacity and static pressure is used to take care of airflow requirement for entire life of HEPA. The blower is high-performance, noise abated, light weighted
statically and dynamically balanced
* SS 304 Double Walled Side Panels
* Mechanical Differential Pressure Gauge (0mm-25mm: 2 Nos.) to monitor pressure drop across intermediate filter
* Photohelic Differential Pressure Gauge HEPA filter and (0mm-10mm: 1 No.) To monitor pressure drop across PRE Filter with respect to ambient
* Electrical control panel mounted on the side panel of the unit
* Tube Light
* ON/OFF Switches for motor
* 5/15 Amp single-phase switch socket for external equipment
* DOP Test port at upstream of HEPA filter

ltem	YN-CYC01	YN-CYC02	YN-CYC03
Dimension	8008001200	10008001200	12008001200
material	Stainless steel 304
Class level	IS0 5 class 100
Parts	caster wheelpressure gauge

Recomend Products

Laminar Flow Clean Bench

Clean Booth(simple clean room)

FFU

AIR FILTER

Pass box

Cargo Air Shower

Our Factory

Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than 30,000 square meters, and an annual output value of more than 300 million RMB.

Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and
has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong

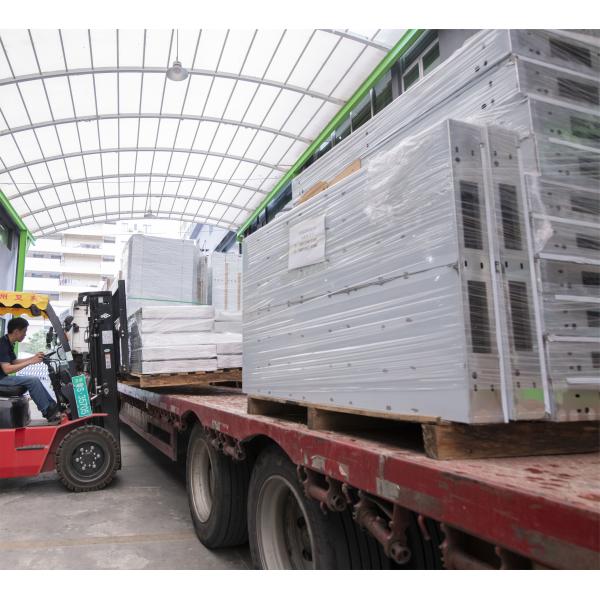

Packing&Delivery

Packaging

The product is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.

shipping

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Exhibition

FAQ

1. Who are we? We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 200 people in our office.Our company and factory are located in Dongguan City, Guangdong Province, China. We welcome you to visit us at your convenience to learn about our factory and products. 2.What can you buy from us? Air Shower, Cargo Air Shower,PVC Fast Rolling Shutter Door,HEPA Box , FFU,BFU, Pass Box, Clean Bench, Clean Booth,Operating Room ,Medical Cabinets,Laminar Flow Ceiling,Medical Scrub Sink,AIR FILTER. 3.How long is your delivery time? Normally 10-15 days for small bulk after get payment and specification confirmed, delivery is differ from different equipments and qty for bulk production. 4. What's your payment terms? 50% deposit after PI confirmed and balance 50% should be paid before shipment. If the order's total amount below $5000, It should be paid 100% in advance. 5. Do you provide samples? Yes, we can provide sample, but the customer should be pay sample fee and shipment cost. The sample fee can be refund after official order placed for same models.
